Is your refrigerator sounding like a helicopter, or is the freezer cold while the fridge is warm? Learning how to test evaporator fan motor components is the fastest way to diagnose these cooling failures and save your food.
The evaporator fan is the unsung hero of your appliance. While the compressor creates the cold, the fan delivers it. It sits in the freezer behind the back wall and pushes cold air up through a damper into the fresh food compartment.
If this fan fails, the airflow stops. This results in a freezer that is -10°F and a fridge that is a balmy 50°F. According to the Department of Energy, maintaining proper airflow is also critical for your appliance’s energy efficiency.
In this comprehensive guide, we will break down the most common bad evaporator fan motor symptoms, diagnose the dreaded refrigerator evaporator fan noise, and show you exactly how to test the motor using a multimeter.
Why Learning How to Test Evaporator Fan Motor is Critical
To understand why the evaporator fan is so critical, you need to understand how a refrigerator actually cools. Contrary to popular belief, most refrigerators do not produce cold air in the fridge section. The cooling magic happens entirely in the freezer.
The evaporator coils (which get freezing cold) are located in the freezer. The evaporator fan motor acts as the “lungs,” blowing air over these frosty coils and circulating it throughout the entire unit. If this fan dies, the cold air is stranded in the freezer. This results in a freezer that is -10°F and a fridge that is a balmy 50°F.
3 Major Bad Evaporator Fan Motor Symptoms
Before you start unscrewing panels, look (and listen) for these tell-tale signs of failure. Diagnosing based on symptoms can save you an hour of unnecessary disassembly.
1. The Dreaded Refrigerator Evaporator Fan Noise
Noise is the number one indicator of a mechanical fan failure. However, not all noises are the same. Listening closely can tell you what is wrong:
- Squealing or Chirping: This usually indicates that the lubrication in the motor bearings has dried out. The motor is spinning, but the friction is causing it to overheat.
- Loud Buzzing or Vibrating: This often happens when the fan blade is loose or unbalanced. It can also occur if ice has built up around the fan housing, causing the blades to hit the ice (like a playing card in bicycle spokes).
- Grinding: A metal-on-metal grinding sound means the bearings are completely shot, or the motor shaft has slipped.
2. The “Warm Fridge, Cold Freezer” Phenomenon
This is the classic airflow symptom. If you open your fresh food door and it feels room temperature, but your ice cubes are solid, the compressor is working fine. The cold air just isn’t moving. If you place your hand over the air vents in the fridge section and feel zero breeze, the fan is likely dead.
3. No Ice Production
Even if your ice maker works, it needs sub-freezing air circulation to freeze the water in the mold. A dead fan means stagnant air. The water in the mold might freeze eventually, but it will take 3x longer than usual, resulting in very low ice production.
Pre-Check: The “Door Switch” Trick
Before grabbing your toolbox, try this simple non-invasive test. Most refrigerators turn off the evaporator fan when you open the door to prevent blowing cold air out into the kitchen.
- Open the freezer door.
- Locate the door switch (the little plunger button on the door frame).
- Press and hold the switch manually with your finger.
- Wait 10-30 seconds.
- Listen: If you hear the motor hum or feel air blowing, the motor is working! If you hear a loud buzzing immediately upon pressing the switch, you have confirmed the source of the refrigerator evaporator fan noise. If there is dead silence, the motor is likely faulty.
Step 1: Accessing the Unit to Test Evaporator Fan Motor
If the symptoms point to the fan, it is time to perform a physical inspection. Warning: Always unplug your refrigerator before removing any panels to avoid electric shock.
Tools You Will Need:
- Nut driver set (specifically 1/4 inch and 5/16 inch)
- Phillips head screwdriver
- A multimeter (essential for the electrical test)
- A towel (to catch melting ice)
- A hair dryer or steamer (if the fan is frozen over)
Removing the Back Panel
The fan is almost always located behind the rear wall of the freezer compartment.
- Clear the Area: Remove all food, shelves, and baskets from the freezer. If you have an ice maker, you may need to remove it (usually held in by 2 or 3 screws).
- Remove the Screws: Look for the screws holding the back panel (evaporator cover) in place. In some models, you may need to pop off small plastic caps to reveal the screw heads.

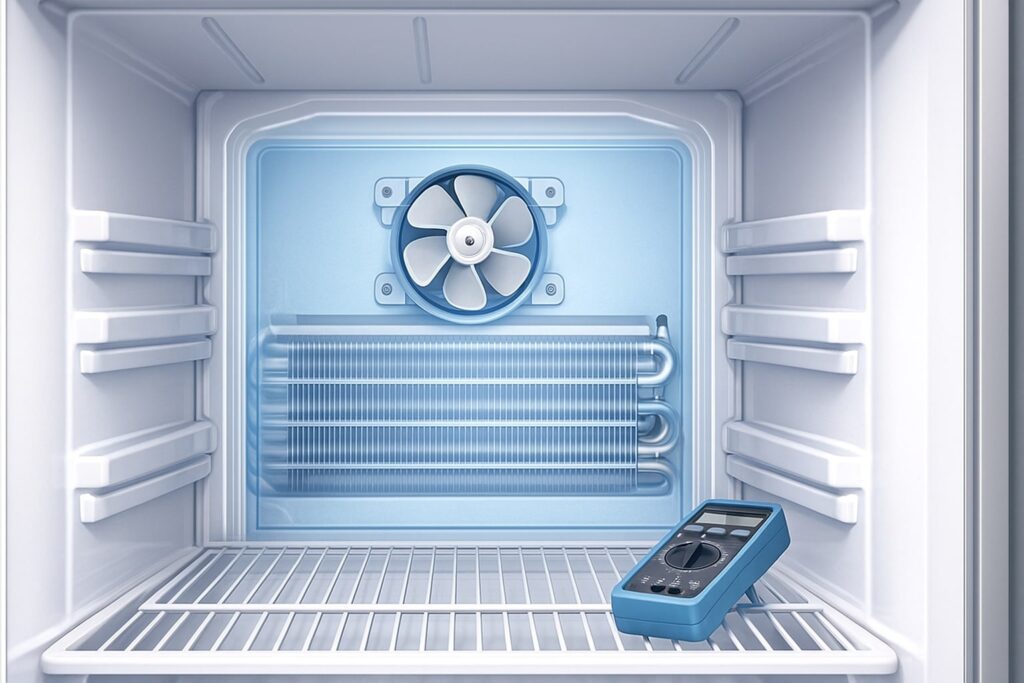

- Expose the Coils: Pull the panel forward. You may need to angle it to get it out. Once removed, you will see the silver evaporator coils and the fan motor, which is usually mounted just above the coils.
Step 2: Physical Check Before You Test Evaporator Fan Motor
Before using your multimeter, check the mechanical condition of the fan. Reach in and flick the fan blade with your finger.
- Scenario A: The Blade is Stuck. If the blade is hard to turn or offers significant resistance, the bearings are seized. No electrical testing is needed—the motor is bad mechanically. Solution: Replace the motor.
- Scenario B: The Blade Wobbles. If the blade feels loose on the shaft, the noise you heard was likely vibration. Solution: Tighten the blade or replace the grommets.
- Scenario C: The Blade Spins Freely. If it spins smoothly and coasts to a stop without noise, the mechanical parts are fine. The issue is electrical. You must now learn how to test evaporator fan motor windings.
Step 3: How to Test Evaporator Fan Motor with a Multimeter
There are two main types of fan motors: standard AC motors (older fridges) and DC variable-speed motors (newer GE, Samsung, LG models). The testing method differs slightly for each.

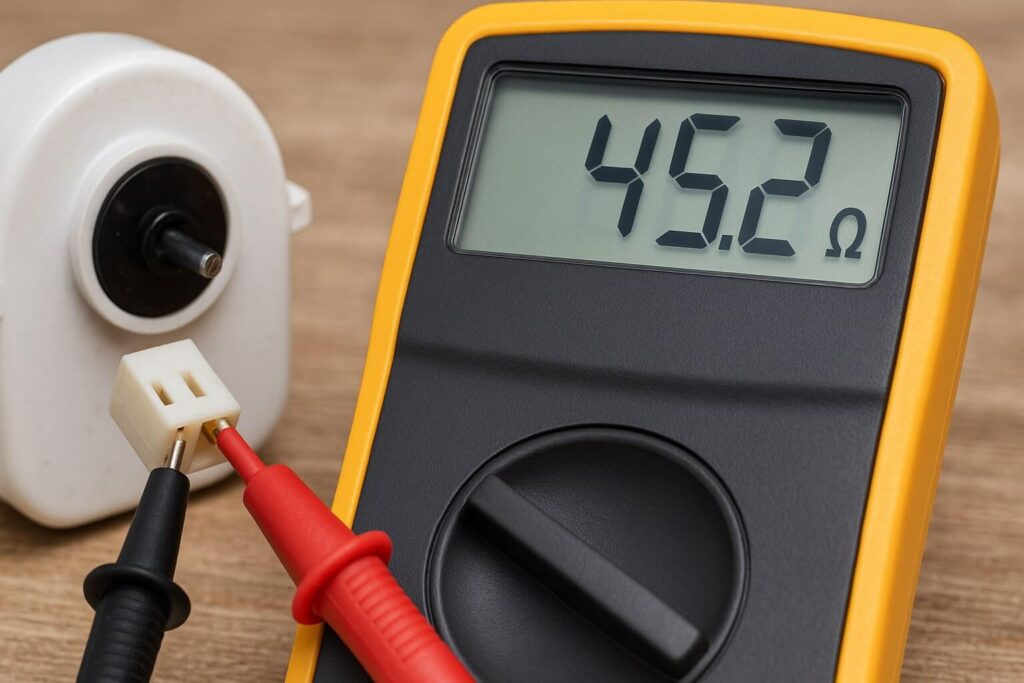

Method A: Testing Standard AC Motors (2 Wires)
These are common in Whirlpool, Frigidaire, and older Kenmore units. They operate on 115V AC.
- Set the Multimeter: Turn your dial to the lowest Ohms (Ω) of resistance setting (usually 200Ω).
- Disconnect: Unplug the wire harness connecting the fan motor to the fridge.
- Measure: Touch one red probe to one terminal inside the plug and the black probe to the other.
- Analyze:
- Good Reading: You should see a reading between 10Ω and 150Ω (check your specific tech sheet if available, but generally, any continuity in this range is good).
- Bad Reading (Open): If the meter stays at “OL” (Open Loop) or “1” (Infinite), the internal windings are broken. The motor is dead.
- Bad Reading (Short): If the reading is 0.00Ω, the motor is shorted out.
Method B: Testing DC Motors (3 or 4 Wires)
Modern energy-efficient fridges (especially GE and Samsung) use Pulse Width Modulation (PWM) motors. These run on low voltage (typically 12V DC) and have internal circuit boards.
Note: You cannot easily test resistance on these motors because the internal circuit board interferes with the reading. Instead, you check for voltage getting to the fan.
- Safety Warning: This test requires the fridge to be plugged in. Be extremely careful not to touch live wires.
- Set the Multimeter: Turn your dial to DC Voltage (V with straight lines).
- Test the Harness: With the fan disconnected and the fridge plugged in (and door switch taped down), test the voltage coming from the fridge harness (not the motor).
- Analyze:
- Look for a reading of approx 12V DC between the Red (Power) and White/Black (Ground) wires.
- If you have 12V coming to the fan, but the fan won’t spin, the fan motor is bad.
- If you have 0V coming to the fan, the issue is likely the main control board, not the fan.
Find the Correct Replacement Motor for Your Model on Amazon
Step 4: Checking the Fan Blade and Grommets
Sometimes, the motor is fine, but the mounting hardware is the source of the refrigerator evaporator fan noise. Inspect the rubber grommets that hold the motor in the bracket. Over time, cold temperatures cause these rubber rings to harden and crack.
If the grommets are worn, the vibration of the motor will transfer directly to the metal bracket, creating a loud buzzing sound. Replacing these cheap rubber washers can often silence a noisy fridge instantly.
Installation Tips for the New Motor
Once you have confirmed the motor is the culprit, installing the new one is straightforward.
- Transfer the Grommets: New motors often don’t come with the rubber mounts. Carefully peel them off the old motor and put them on the new one.
- Don’t Overtighten: When screwing the fan bracket back in, do not overtighten the screws, as this can crack the plastic liner of the fridge.
- Seat the Fan Blade Fully: Push the fan blade onto the new shaft until it hits the stop. If it isn’t seated fully, it might rub against the fan cover.
FAQ: Evaporator Fan Troubleshooting
How much does it cost to replace an evaporator fan motor?
If you DIY, the part typically costs between $40 and $120 depending on the brand. If you hire a professional, expect to pay between $250 and $400 for parts and labor.
Can I run my fridge without an evaporator fan?
No. Without the fan, the freezer will get extremely cold (potentially damaging the compressor due to lack of heat exchange), and the fridge section will become warm, causing food spoilage within 24 hours.
Why does my fan stop when I open the door?
This is a standard energy-saving feature. It prevents the fan from blowing cold air out into the room and sucking warm, humid kitchen air into the system. This is why you must tape down the door switch to test the fan while the door is open.
Conclusion
Diagnosing refrigerator evaporator fan noise and airflow issues is a rite of passage for DIY homeowners. By learning how to test evaporator fan motor windings and recognizing the bad evaporator fan motor symptoms early, you can avoid the high cost of a service call.
Remember, if your motor tests fine but you are still seeing frost buildup, the issue might not be the fan at all. You might have a defrost system failure. Check out our next guide on how to test a refrigerator defrost heater to continue your troubleshooting journey.
